Clients (Loree Users) must complete the following steps to rotate Developer Keys in Canvas to secure Loree:

Developer Key Generation using LTI Key:

Step 1: Log in to Canvas as an Account Admin on root account

Step 2: Open the Admin menu from Account Navigation and select the Account name

Step 3: Select Developer Keys in the sidebar

Step 4: Click the + Developer key button and choose LTI Key.

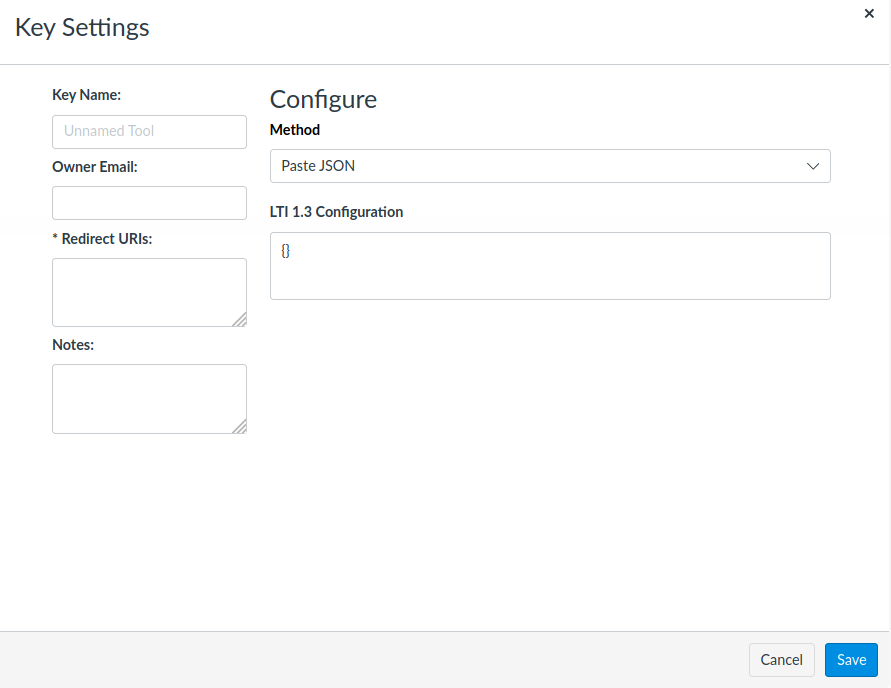

Step 5: You will be navigating to the below screen where you have to fill in the details as mentioned below

For US Clients:

1. Key Name: Loree

2. Owner Email: support@loree.io

3. Redirect URIs: https://loree-us-api.crystaldelta.net/lti/auth

4. Configure Method: Paste JSON


5. Copy the below JSON values and paste them in on LTI 1.3 Configuration field.


6. { "title": "Loree", "scopes": [], "extensions": [ { "platform": "canvas.instructure.com", "settings": { "platform": "canvas.instructure.com", "placements": [ { "default": "disabled", "placement": "course_navigation", "visibility": "admins", "message_type": "LtiResourceLinkRequest" } ] }, "privacy_level": "public" } ], "public_jwk": {}, "description": "Production environment ", "custom_fields": { "roles": "$Canvas.membership.roles", "user_id": "$Canvas.user.id", "course_id": "$Canvas.course.id", "is_root_account_admin": "$Canvas.user.isRootAccountAdmin" }, "public_jwk_url": "https://canvas.instructure.com/api/lti/security/jwks", "target_link_uri": "https://loree-us-api.crystaldelta.net/lti/auth", "oidc_initiation_url": "https://loree-us-api.crystaldelta.net/lti/launch" }

Save the Key Settings after filling in the details. (Make sure the JSON format should be valid).

Step 7: Please note/copy the client ID for future reference.

Developer Key Generation using API Key

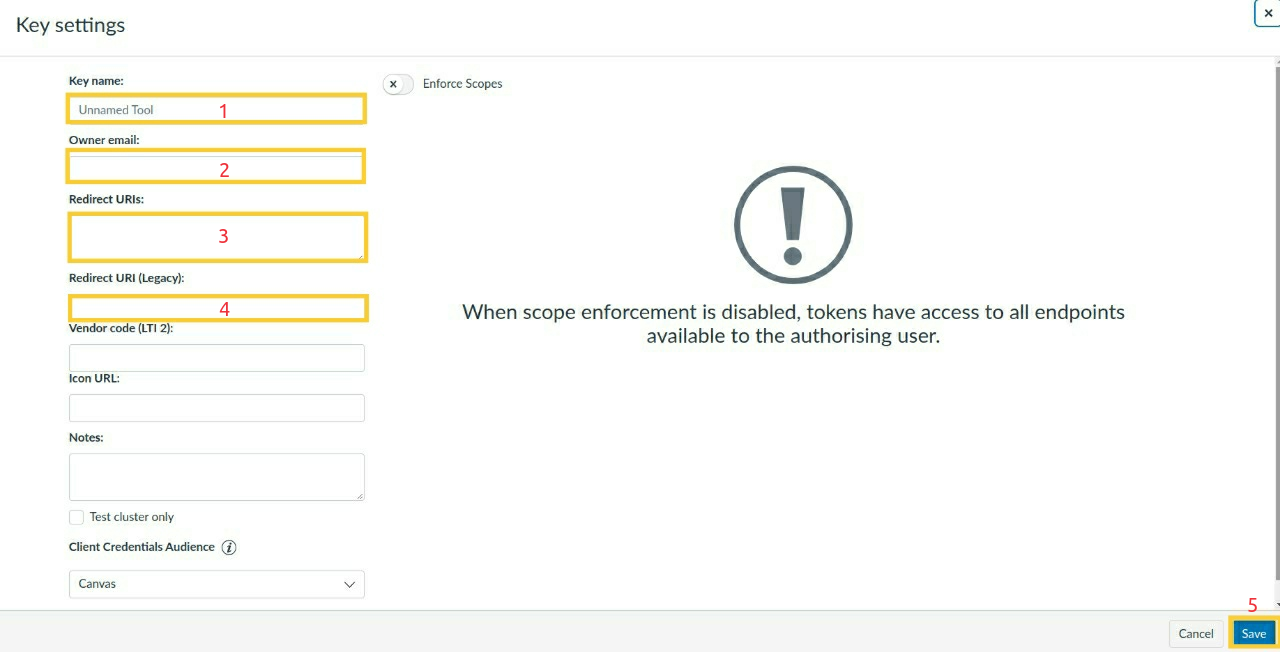

Step 8: Repeat steps 1, 2, and 3. To create an API key click the + Developer key button and choose API Key to access Canvas API’s from Loree.

For US Clients:

1. Key Name: Loree-api

2. Owner Email: support@loree.io

3. Redirect URIs: https://loree-us-api.crystaldelta.net/lti/token

4. Redirect URI (Legacy): https://loree-us-api.crystaldelta.net/lti/token

5. Click on “Save“ to create new Developer key

For AUS Clients:

1. Key Name: Loree-api

2. Owner Email: support@loree.io

3. Redirect URIs: https://loreev2.crystaldelta.net/lti/token

4. Redirect URI (Legacy): https://loreev2.crystaldelta.net/lti/token

5. Click on “Save“ to create new Developer key

Step 10: Turn ON the new developer key status

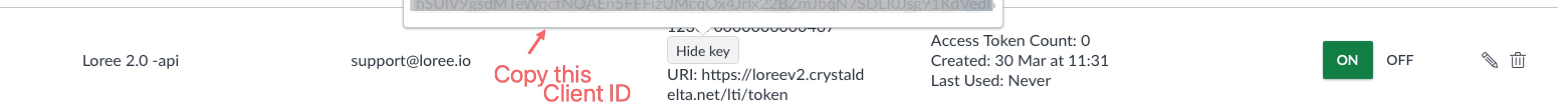

Step 11: Please note/copy the client ID and secret key for future reference

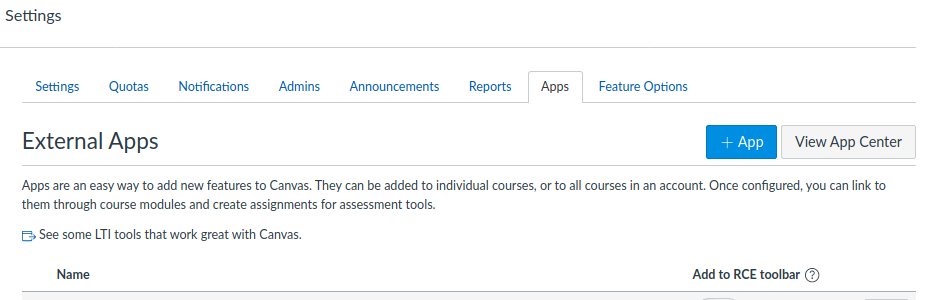

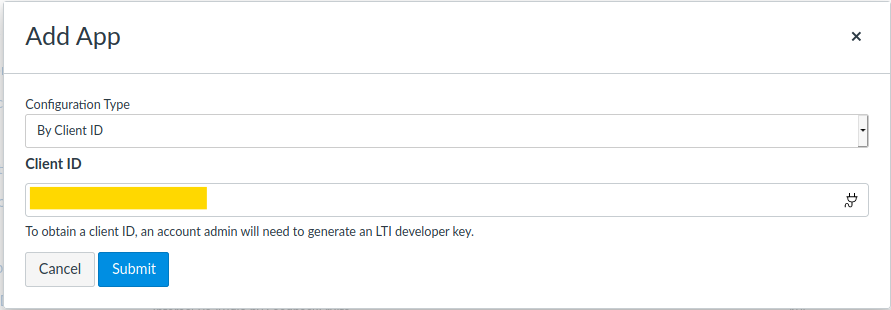

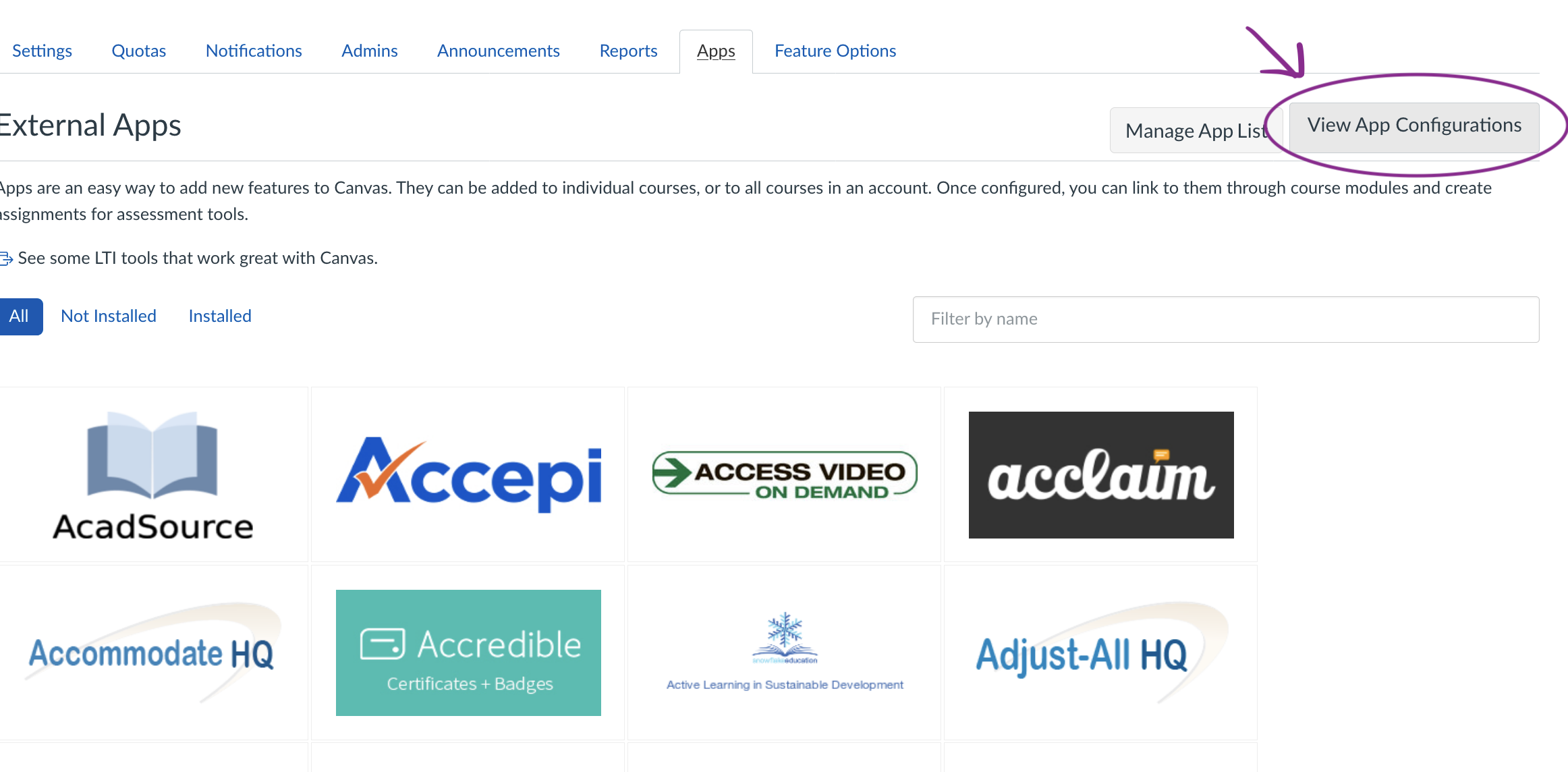

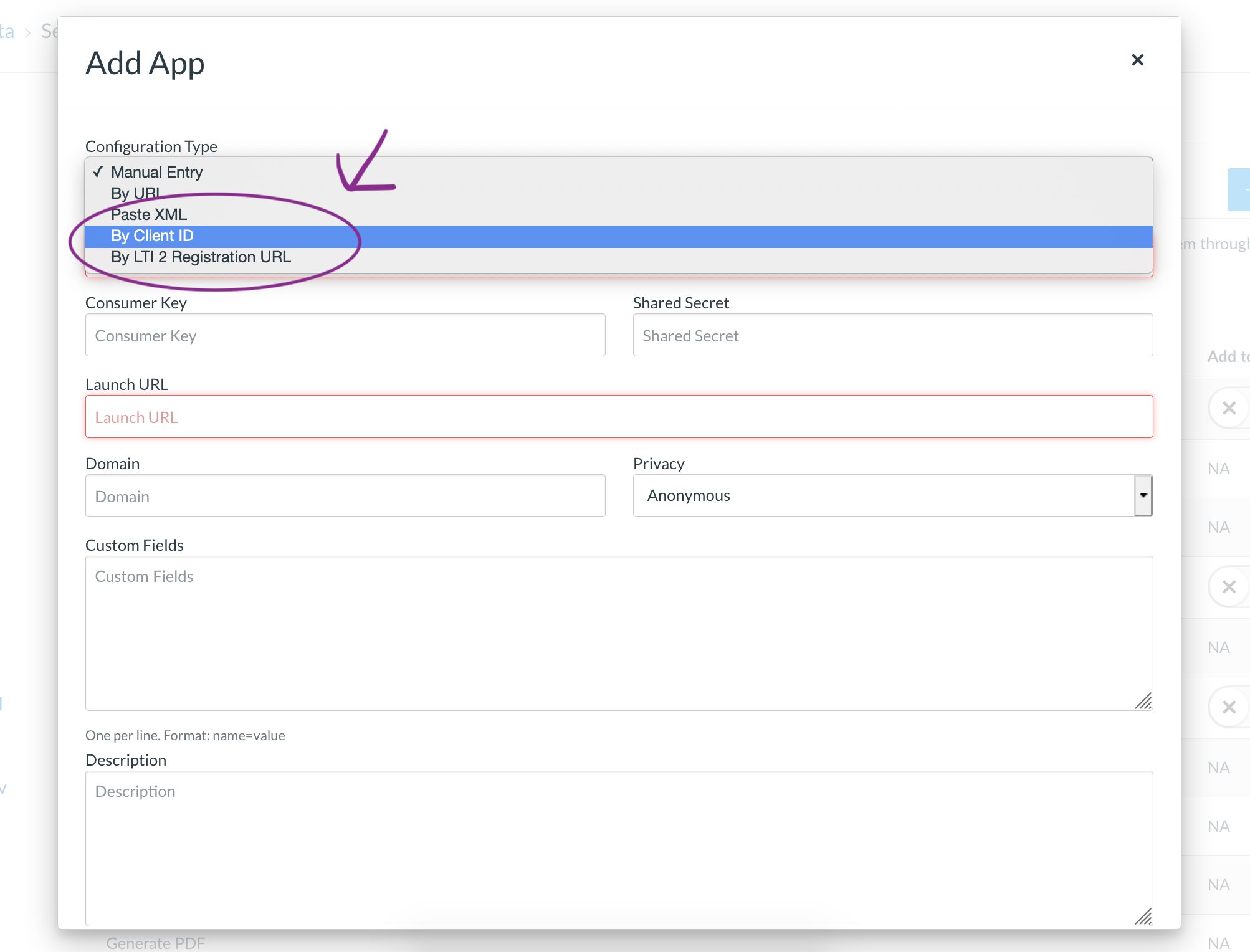

Install Loree LTI app in Canvas

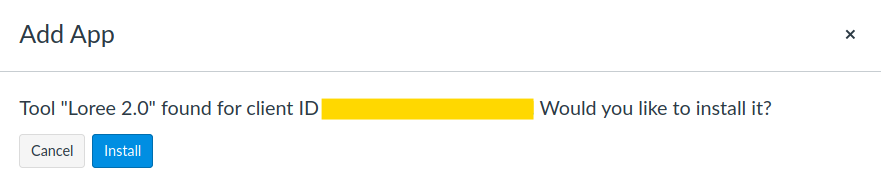

Step 16: In the dialog that appears, click install:

Step 17: Make sure Loree is available on the External Tools list.

Adding Canvas as a Tool Consumer in Loree:

Step 18: You are at the final step of configuration. This process has to be done by the Loree Super Admin at the back-end. All you have to do is share the below values:

• Canvas instructure URL (Example: https://crystaldelta.instructure.com)

• New LTI client ID

• New API client ID

• New API client Secret (click on Show Key to get the secret)

We need the Existing developer Keys of Loree tool as well

1. Old LTI client ID

2. Old API client ID

3. Old API client Secret

Note: You can share the details via Email or any mode of a secure connection

(Note: This configuration process may take several minutes. )
