Kaltura LTI 1.3 Integration inside Loree
Steps to do on the Kaltura admin page:
Step: 1
In order to configure Kaltura LTI 1.3 inside Loree, first you have to contact the Kaltura team to get a new sub-instance (if you already have Canvas Kaltura) to proceed with integration with a third-party application like Loree.
Note: Kaltura is specifically available for LMS’s like Canvas, Blackboard, Moodle, Brightspace, etc. For any third-party applications other than LMS, you need to get another sub-domain, which can be enabled only via Kaltura support.
Step: 2

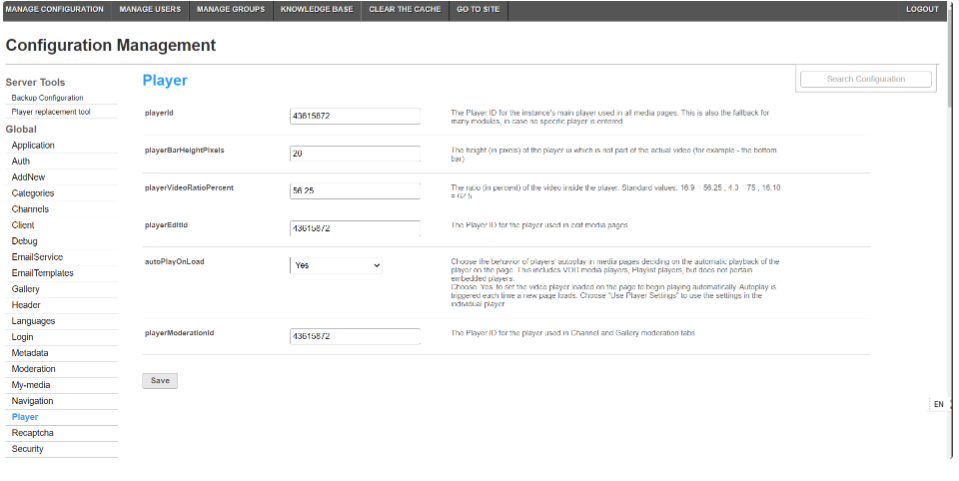

Navigate to the parent Kaltura account
page, where you can see the Player option in the left menu. Click the
link. It will navigate to the page as per the attached screenshot. (Copy
the PlayerID value.)
Step: 3
Now, navigate to the sub-instance Kaltura account page and replace the copied playerID with the sub-instance playerID value in three fields as per the attached screenshot.
Step: 4
In the Kaltura admin page left menu, we have the options Browse and Embed. We have to replace the uiConfid with the copied playerID value.
Step: 1

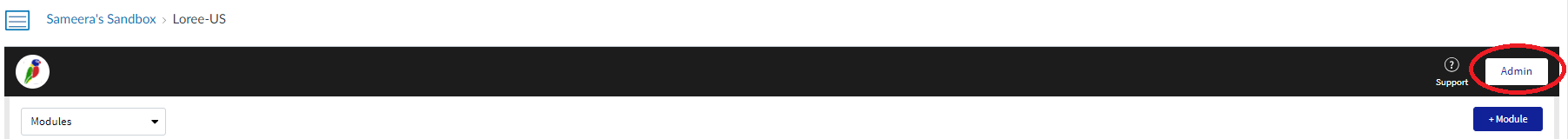

Launch Loree with Loree-admin access. Click on the “Admin” button on the right top of the navigation bar.
Step: 2

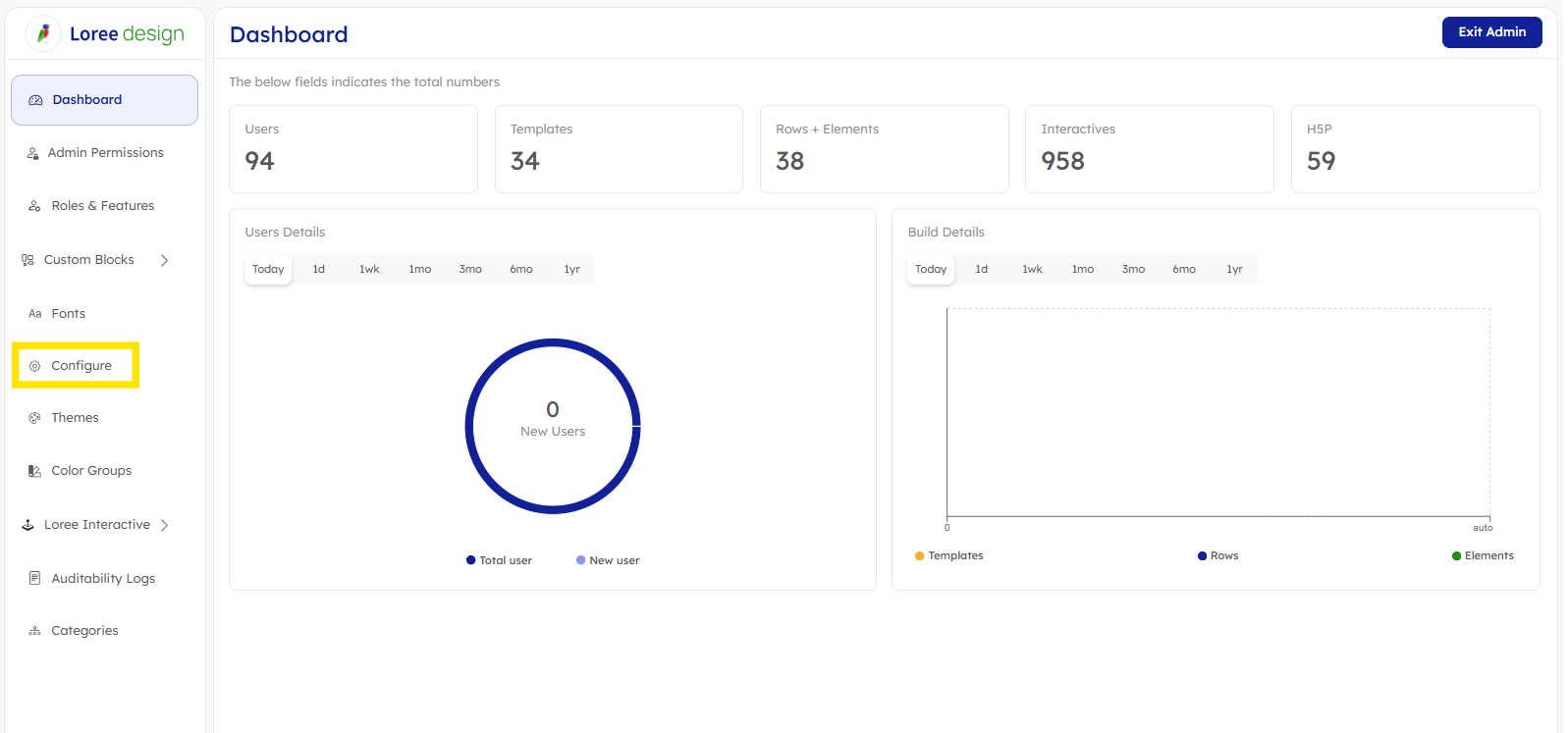

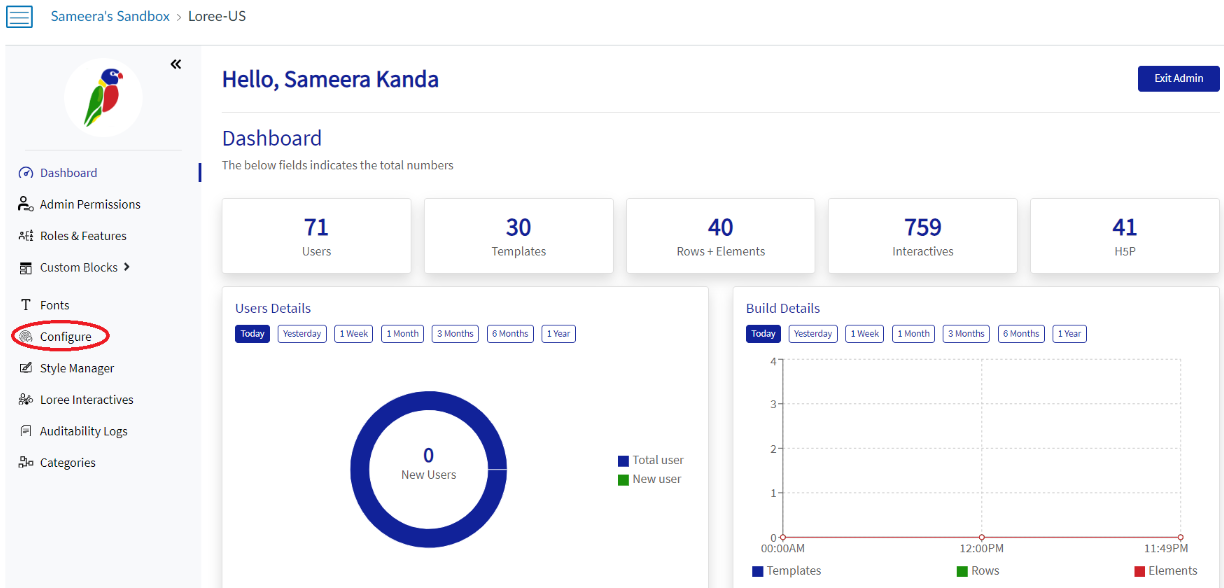

Go to Configure.
Step 3: Click on the “External Tools' tab.
Step 4: Click on “Add External Tool.”

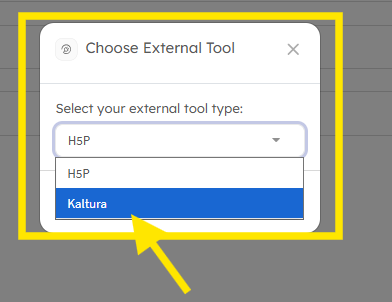

Step 5: Pick your Tool Type as “Kaltura” from dropdown and click on “Add”.

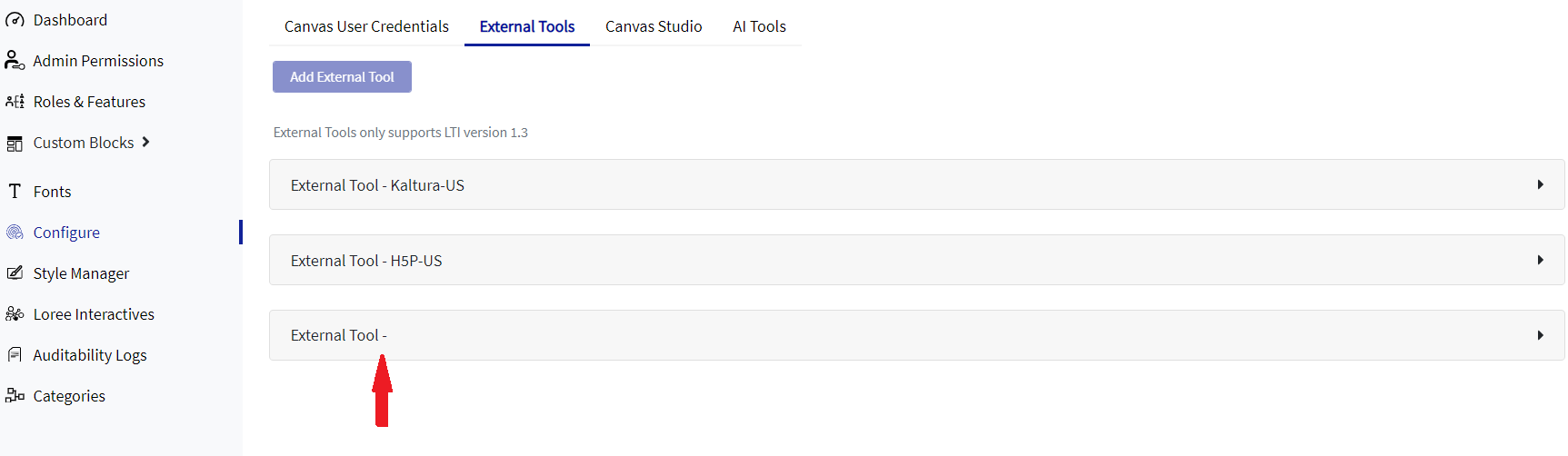

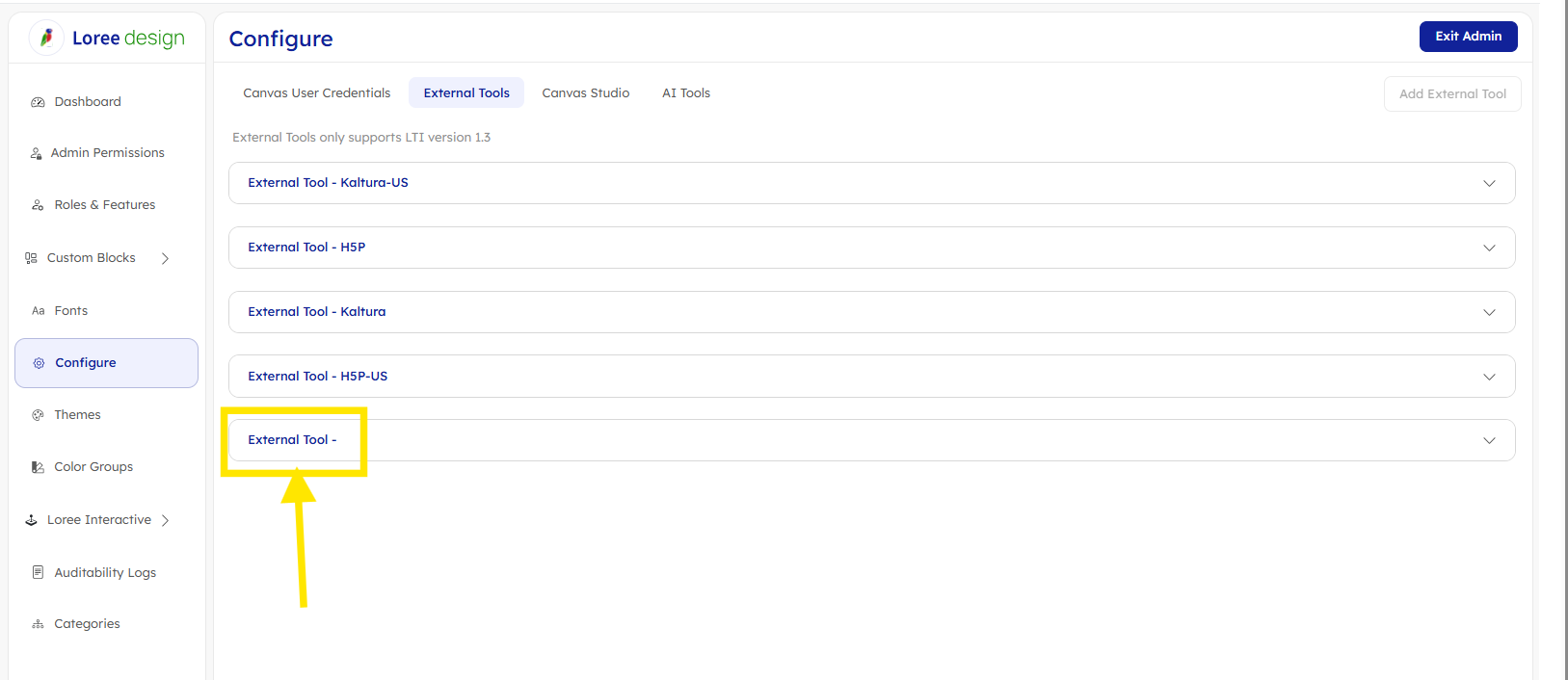

Step 6: A new section will be created to add your external tool details. Click on it to expand the section.

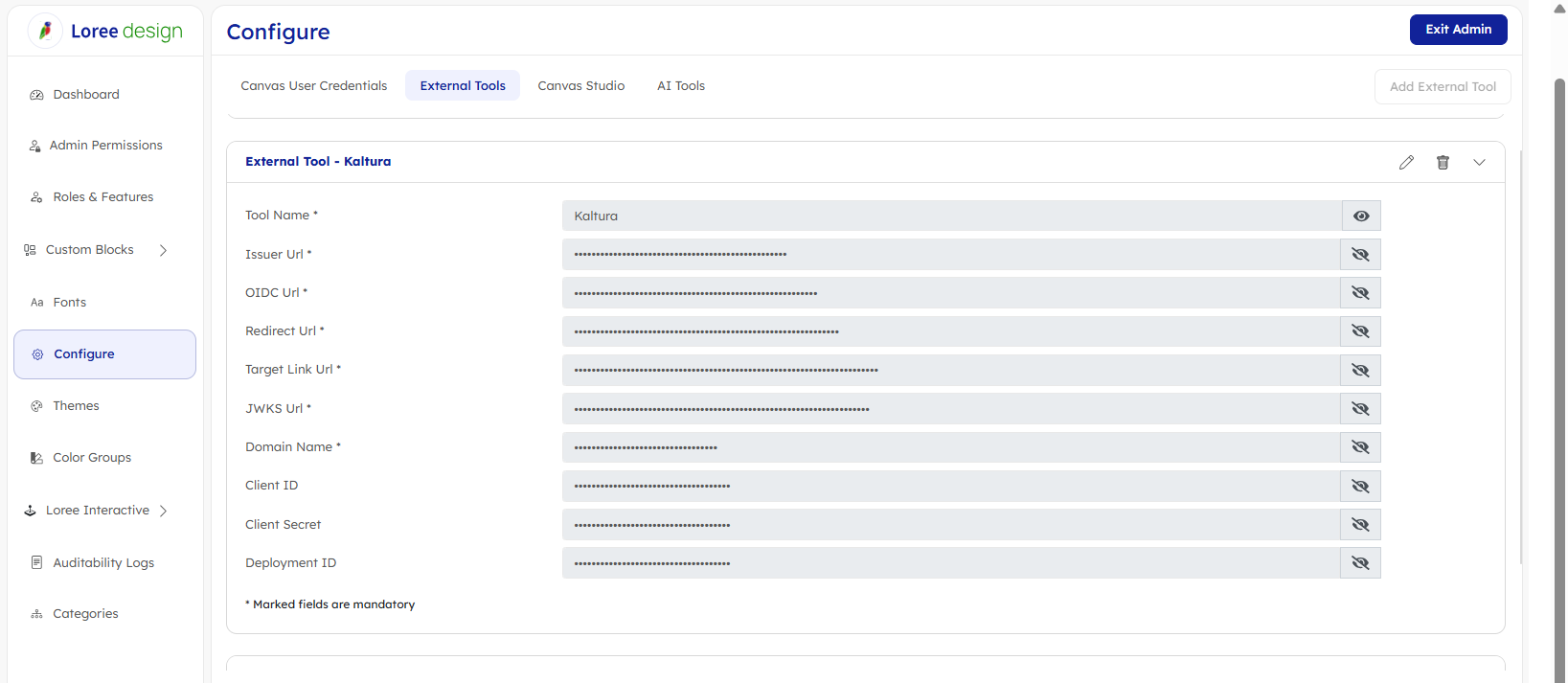

Step 7: Fill in the details given below and click on “Save”.
Users need to replace https://xxxxxxx-x.kaf.kaltura.com with our newly created subinstance url from Kaltura. It will contains partner ID with -XX.
| Tool Name: | Kaltura |
| Issuer Url: | Loree |
| OIDC Url: | https://xxxxxxx-x.kaf.kaltura.com/hosted/index/oidc-init |
| RedirectUrl: | https://xxxxxxx-x.kaf.kaltura.com/hosted/index/oauth2-launch |
| Target Link Url: | https://xxxxxxx-x.kaf.kaltura.com/browseandembed/index/browseandembed |
| JWKS Url: | https://xxxxxxx-x.kaf.kaltura.com/hosted/index/lti-advantage-key-set |
| Domain Name: | https://xxxxxxx-x.kaf.kaltura.com |
Note: xxxxxxx-x is refer the sub-domain of Kaltura.
Step: 8

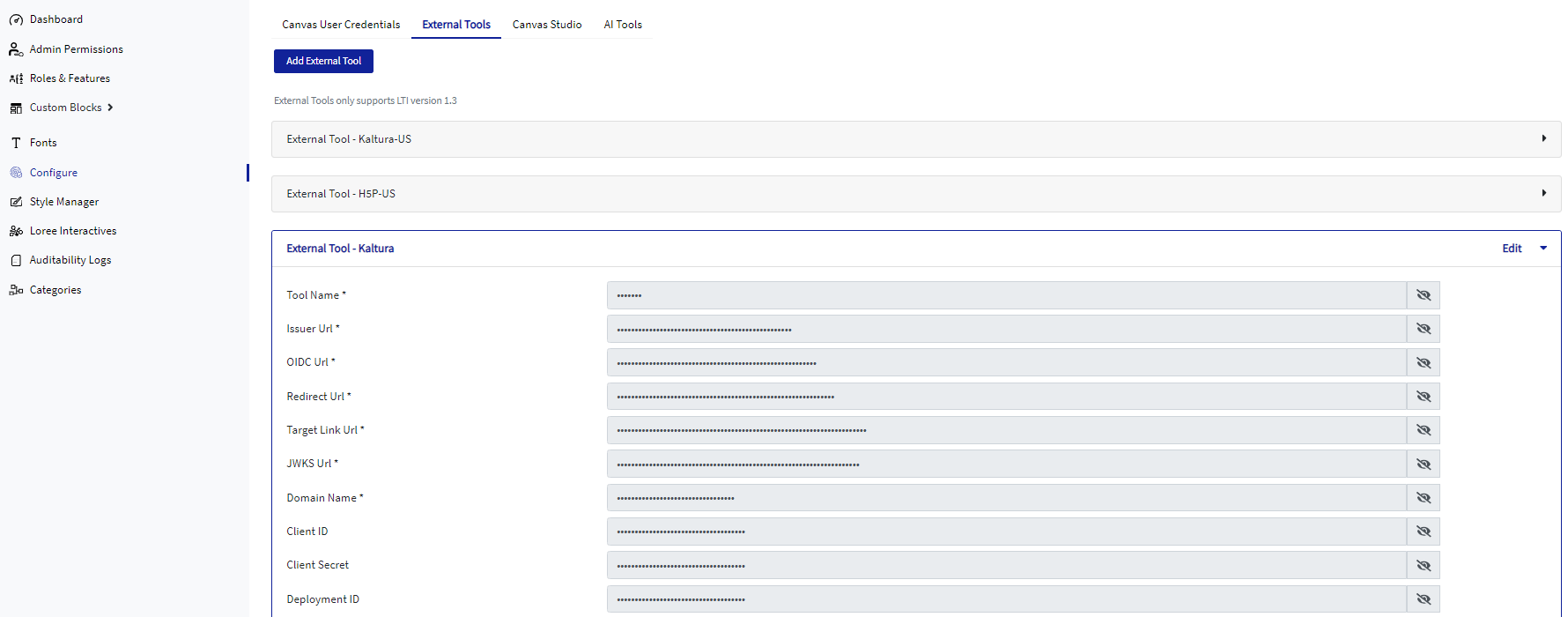

Once you click the save button it will generate the Client ID, Client Secret, Deployment ID.
Note: Copy the client ID
Step: 9
To use Kaltura inside Loree editor, please make sure it’s enabled and Toggled ON under Admin → Roles and Features → Advanced.
Steps to do configure Loree to the Kaltura account:
Step 1:
To add Loree in the Kaltura LTI configure page, we have to navigate to https://xxxxx-1.kaf.kaltura.com/admin/config/tab/hosted
Step 2:
Need to choose the lti1.3 version for auth method and we have to update the given fields.
Here you need to choose the lti1.3 version for auth method

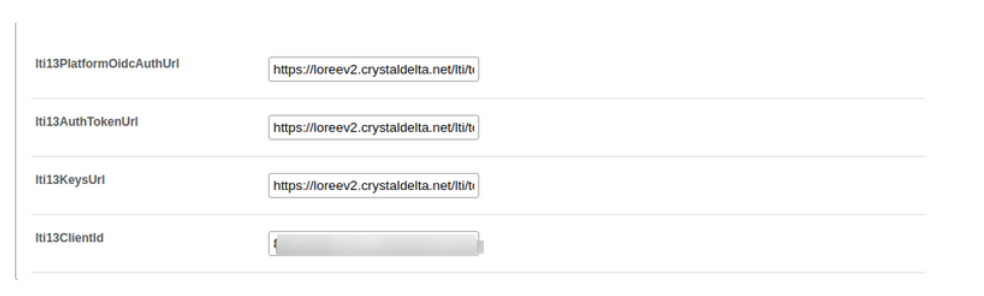

| For AUS region: | |
| lti 13PlatformOidcAuthUrl: | https://loreev2.crystaldelta.net/lti/tool/authorize_redirect |
| lti13AuthTokenUrl: | Loree |
| lti13KeysUrl: | https://loreev2.crystaldelta.net/lti/tool/jwks |
| lti13ClientId : | Update the client ID from Step 8. |

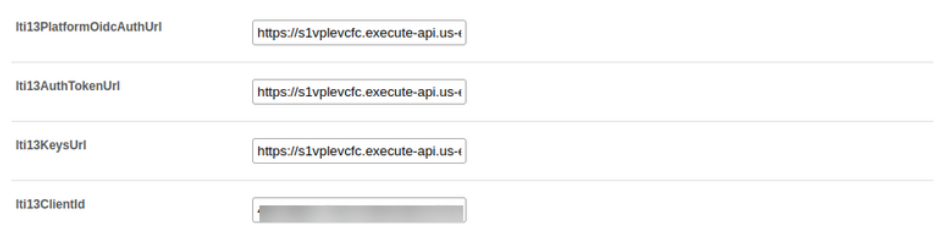

| For US region: | |
| lti13PlatformOidcAuthUrl: | https://s1vplevcfc.execute-api.us-east-2.amazonaws.com/master/lti/tool/authorize_redirect |
| lti13AuthTokenUrl: | https://s1vplevcfc.execute-api.us-east-2.amazonaws.com/master/lti/tool/kaltura |
| lti13KeysUrl: | https://s1vplevcfc.execute-api.us-east-2.amazonaws.com/master/lti/tool/jwks |
| lti13ClientId : | Update the client ID from Step 8. |
Steps to test the kaltura integration

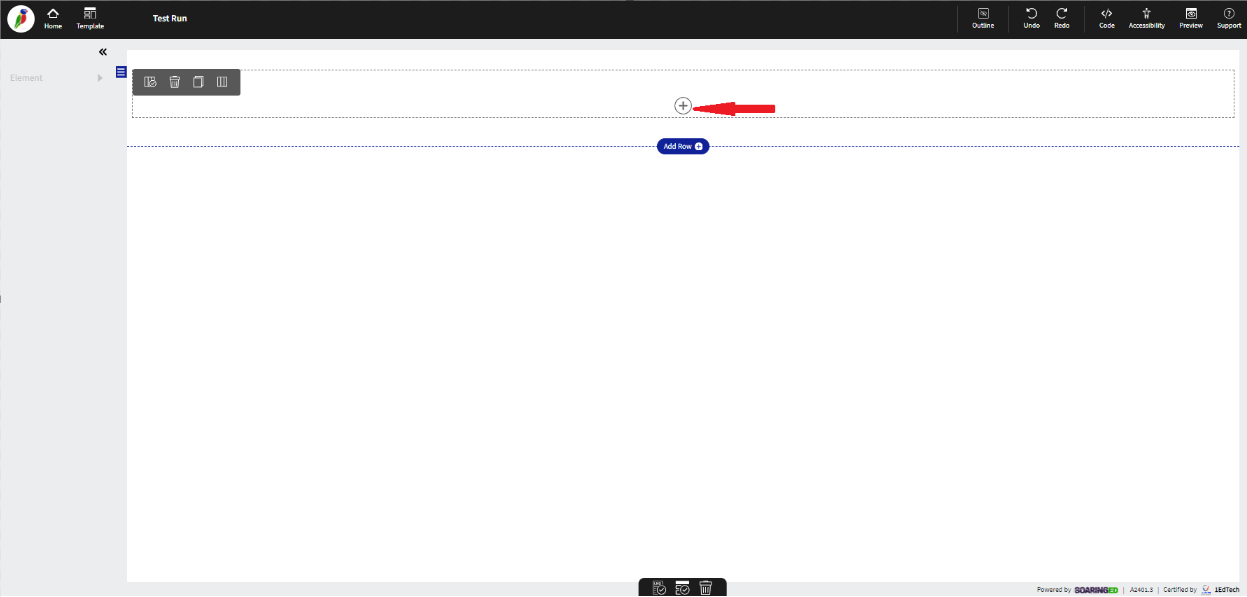

Step 1: Launch Loree Editor and click on “+(Add element)” inside a column.

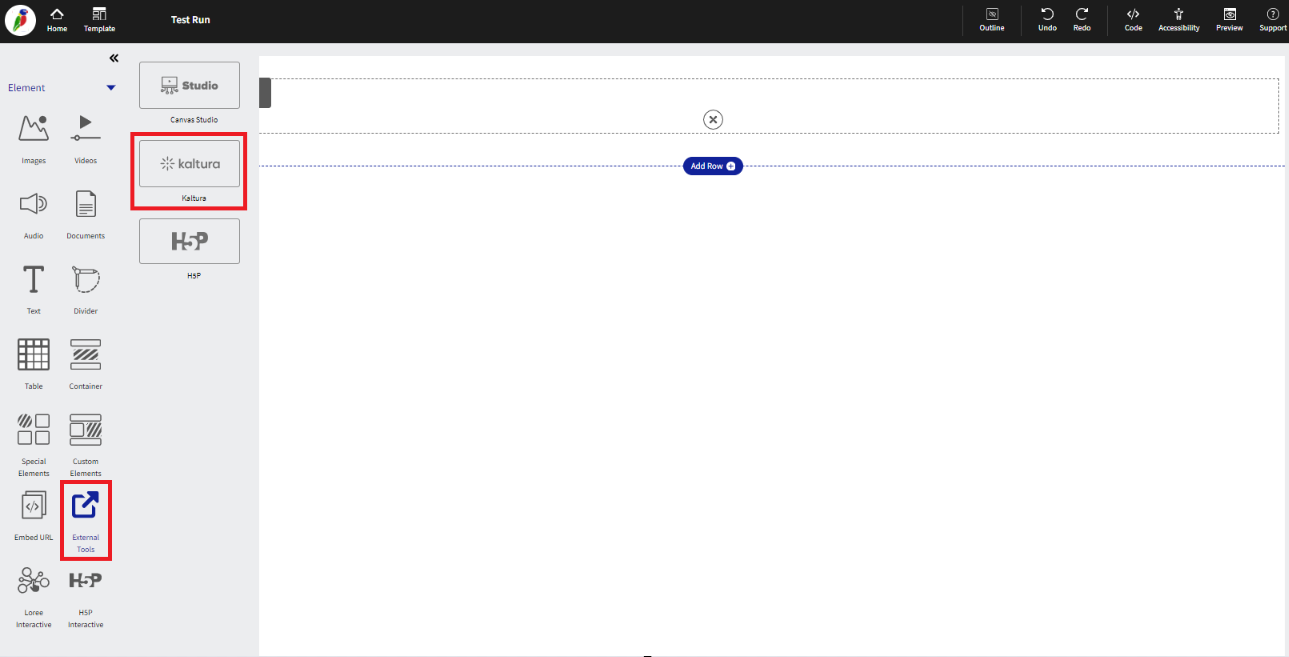

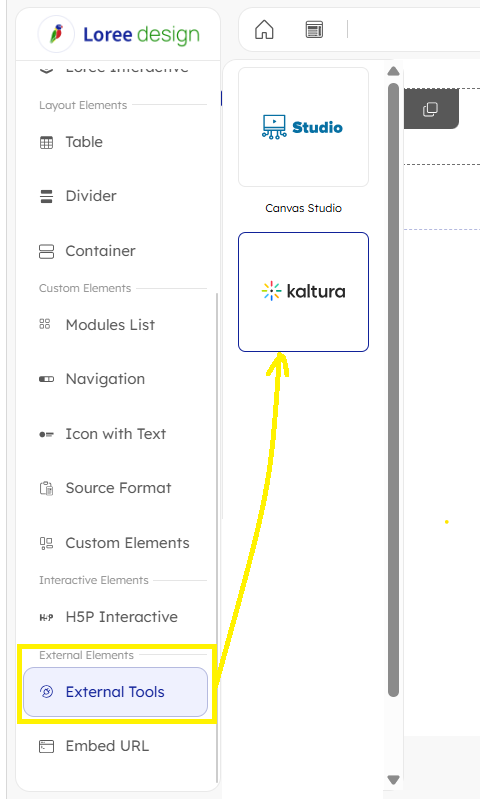

Step 2: Click on “External Tools” element then click on “Kaltura” to launch the Kaltura LTI in the Loree editor.

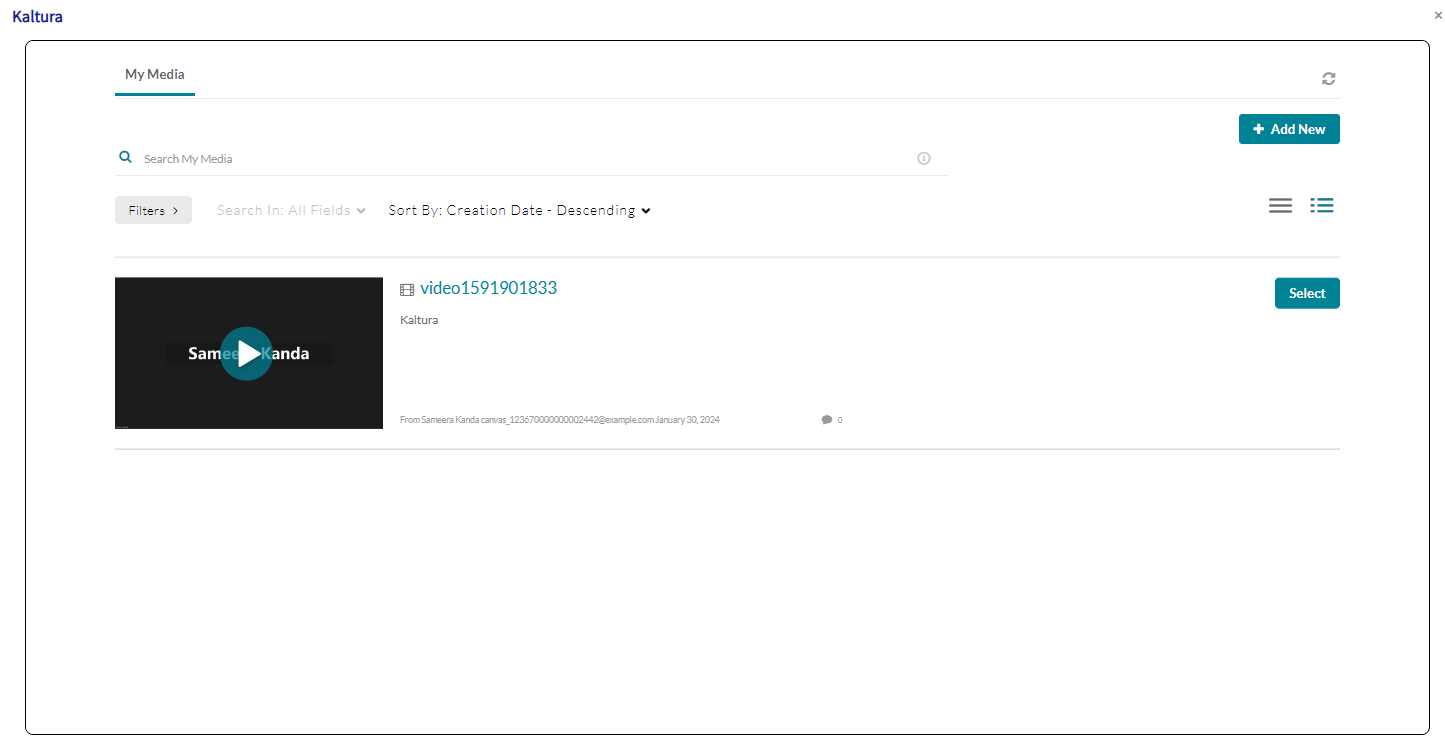

Step 3: After the successful launch, you can embed Kaltura videos inside the Loree editor by clicking on “select” and “Embed”.
Note:
Currently we are supporting the video embed function only.
Thank you!
